Featuring a patented multi-directional adjustment design. The Beta+ valves are made to fit virtually all float operated cisterns. The unique ability to the move the arm to either the left or right from the standard position provides flexibility when installing the valve into the cistern. The float is sold separately.

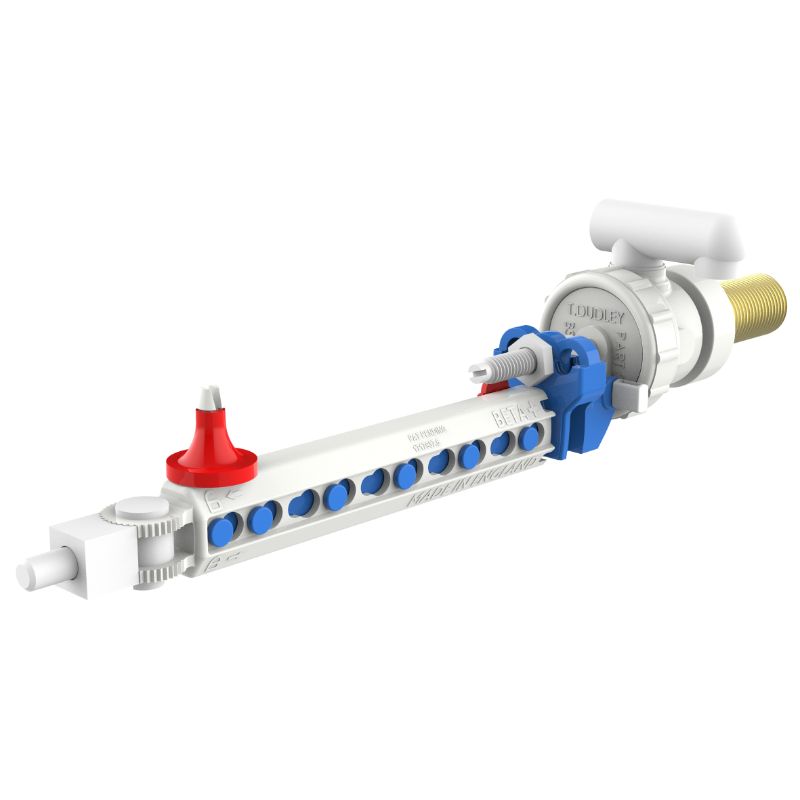

Dudley Beta+ Brass Telescopic Bottom Inlet Valve
Dudley Beta+ Brass Telescopic Bottom Inlet Brass Tail Part 3 Ball Valve with Thomas Dudley Back Plate, Adjustable and Swivel Arm
Code327645
Overview
Features
- Fits Virtually all float operated cisterns
- 5/16” BSW float size
- Patented multi-directional adjustment
- Easy Installation
- Unique float arm can be fixed in 3 positions
- Designed and manufactured in the UK to BS1212 Standard
- Swivel adjustment allows the float to be fixed through 180 degrees
- Float arm extends from 185mm - 285mm
- Stock Item - Available for next working day dispatch
You might also need
Related Products
Frequently asked questions
How do Dudley filling valves cope with high and low water pressure?
Our current range of fully compliant Hydroflo inlet valves, come pre-fitted with a flow regulator, so no need for a flow restrictor. Our previous range were supplied with a flow restrictor, which needed to be removed for water pressures below 1.5 bar. As these inlet valves operate on an equilibrium principle, which uses the supply water pressure against itself to operate the valve they are suitable for use on water pressures between 0.1 bar and 14 bar.
