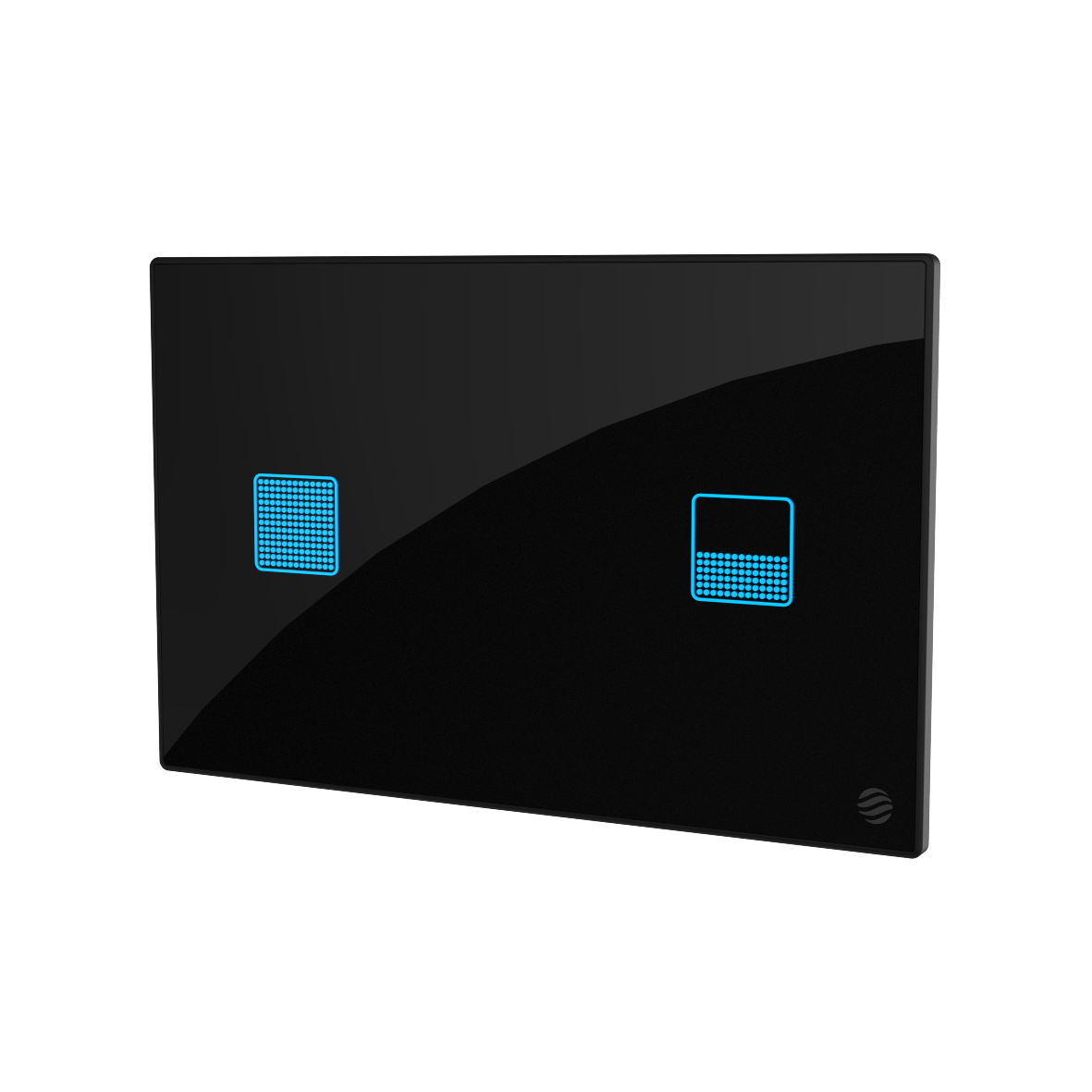

Wave™ S3 – Electronic Push Plate

Wave™ S3 Touch-Free Electronic Push Plate.

Share Share Share Share

Overview

The Wave™ S3 Intelligent Flush Actuator is a high-end flushing solution for commercial and domestic installations that demand a premium finish.

In conjunction with a Dudley Niagara Pneumatic this intuitive, touch free flush actuator provides a full and a water saving reduced flush.

The Wave S3 features illuminated flush status icons to provide visual feedback: Blue: User detected and ready to flush. Green: Flush activated. Red: Cistern filling.

Brochure

Helpful files

Datasheet Instructions

Features

242mm [W] x 156mm [H] x 12mm [D]
Electronic Dualflush Feature
Hygienic touch free operation
7cm approx. Flush Sensor Range
Three sensor range set-up options: Default, Automatic or Manual
Compatible with Dudley Illusion A Frame
Compatible with all Dudley Vantage and Miniflo cisterns
Scratch and graffiti resistant coating reduces the risk of damage to the front window
Incorporates discrete, tamper resistant, quick release locks for easy service access
Dedicated branding and custom status icons available [Subject to order quantity]
5 working day dispatch

For Specifiers

ELEGANCE IN THE DETAIL

One-touch flushing has never looked better, with a choice of designs and sizes you can be sure the detail in our range of buttons and plates will suit any commercial or domestic installation.

Thomas Dudley’s range of buttons and plates are designed to add the finishing detail to any bathroom and are available in many styles and finishes.

Discover our full range of available options, whether you require dualflush water saving, hygienic touch-free features or light touch operated products, we offer solutions to suit any
specification.
